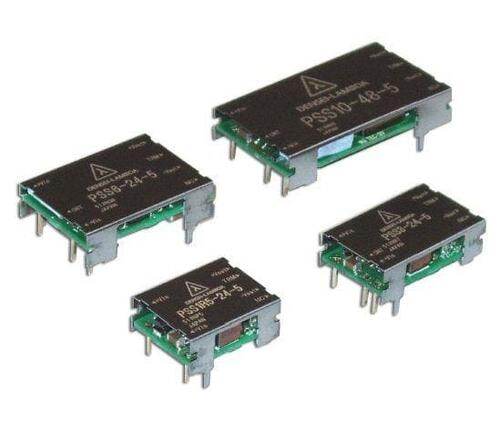

PSS6-48-12
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 6W 12V 0.5A
PDF
/
Inventory: 3456
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2005
Series PSS (6W)
Size / Dimension 0.79Lx0.63W x 0.31 H 20.0mmx16.0mmx8.0mm
Feature Remote On/Off, OCP, OVP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature SEATED HGT-NOM
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T7
Number of Outputs 1
Efficiency 84%
Voltage - Isolation 500V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 500mA
Control Features Enable, Active Low
Total Power Output-Max 6W
Dimensions
Height Seated (Max) 8mm
Length 28.5mm
Width 20.5mm
Compliance
RoHS Status RoHS Compliant
