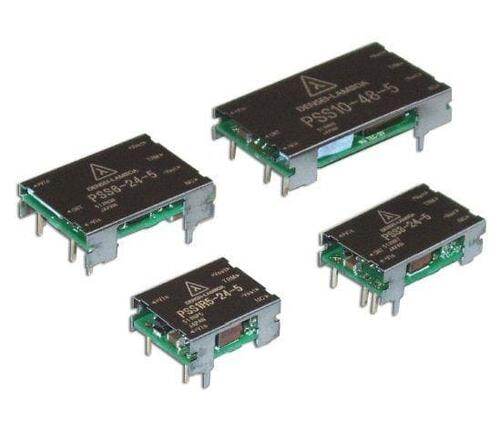

PSS3512 image
Favorite
PSS3512 image
Favorite
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 12V
PDF
/
Inventory: 9510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Lifecycle Status OBSOLETE (Last Updated: 1 month ago)

Physical

Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Number of Pins 11

Technical

Operating Temperature -40°C~85°C With Derating
Published 2006
Series PSS (3W)
Size / Dimension 1.02Lx0.63W x 0.31 H 25.9mmx16.0mmx8.0mm
Feature Remote On/Off, OCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature SEATED HGT-NOM
Power Rating 3W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 16mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T7
Number of Outputs 1
Efficiency 84%
Voltage - Input (Max) 9V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 250mA
Output Power 3W
Current - Output 1 250mA
Total Power Output-Max 3W
Isolation Isolated

Dimensions

Height 7.874mm
Length 26mm

Compliance

RoHS Status RoHS Compliant
