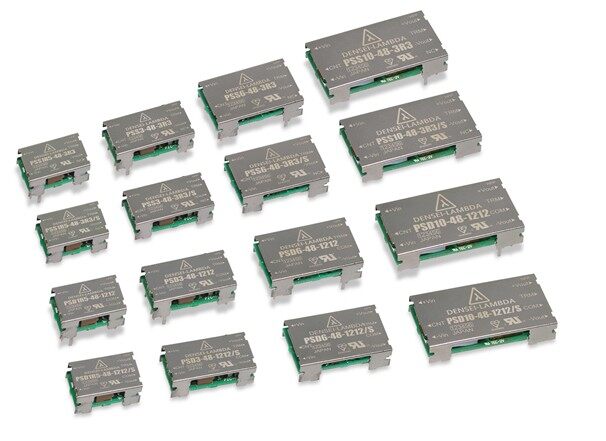

PSS3-24-3R3 image
Favorite
PSS3-24-3R3 image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 3W 3.3V 0.6A
PDF
/
Inventory: 1700
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 26mm
Height Seated (Max) 8mm

Technical

Current - Output (Max) 600mA
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 500V
Number of Outputs 1
JESD-30 Code R-XDMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology HYBRID
Additional Feature SEATED HGT-NOM
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.02Lx0.63W x 0.31 H 25.9mmx16.0mmx7.9mm
Series PSS (3W)
Published 2005
Operating Temperature -40°C~85°C

Physical

Surface Mount NO
Package / Case 6-SMD Module
Mounting Type Surface Mount
