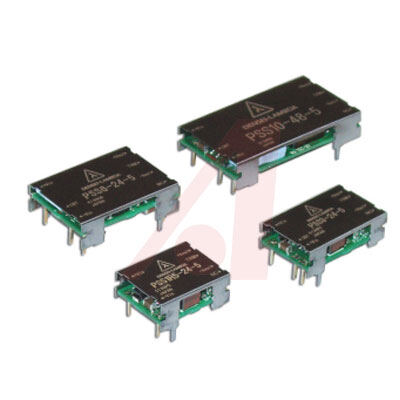

PSS1R52412 image
Favorite
PSS1R52412 image
Favorite
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 1.5W 12V 0.125A
PDF
/
Inventory: 6674
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Lifecycle Status OBSOLETE (Last Updated: 1 month ago)

Physical

Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Number of Pins 10

Technical

Operating Temperature -40°C~85°C With Derating
Published 2006
Series PSS (1.5W)
Size / Dimension 0.79Lx0.63W x 0.31 H 20.0mmx16.0mmx8.0mm
Feature Remote On/Off, OCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 1.5W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Depth 16mm
JESD-30 Code R-XDMA-T6
Number of Outputs 1
Efficiency 84%
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 125mA
Output Power 1.5W
Current - Output 1 125mA
Isolation Isolated

Dimensions

Height 7.874mm
Length 20mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
