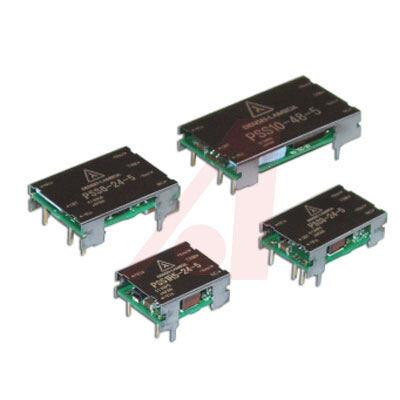

PSD10121212 image
Favorite
PSD10121212 image
Favorite
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V
PDF
/
Inventory: 3734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 40.5mm
Height Seated (Max) 8mm

Technical

Total Power Output-Max 10W
Voltage - Output 2 -12V
Current - Output (Max) 500mA 500mA
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 18V
Efficiency 84%
Number of Outputs 2
JESD-30 Code R-XDMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Power (Watts) 12W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP
Size / Dimension 1.59Lx0.87W x 0.31 H 40.4mmx22.1mmx8.0mm
Series PSD (10W)
Published 2006
Operating Temperature -40°C~85°C With Derating

Physical

Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
