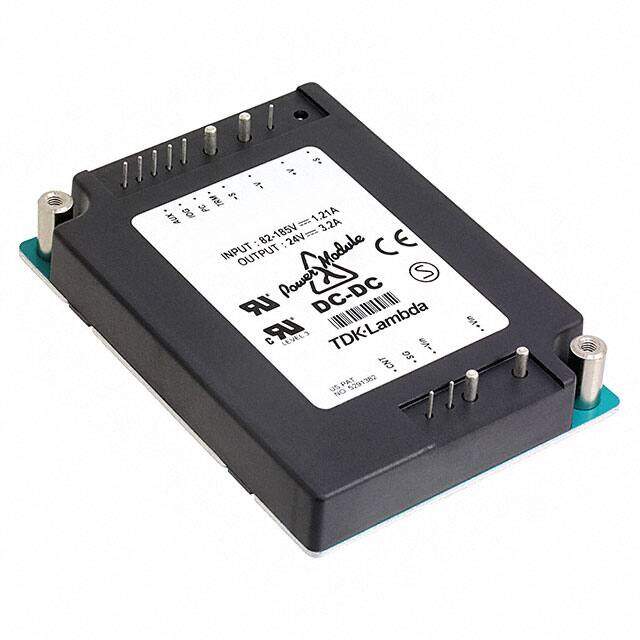

PH75S110-5
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 75W 5V 15A
PDF
/
Inventory: 5351
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 12.7mm
Technical
Isolation Isolated
Current - Output 1 15A
Control Features Enable, Active Low
Output Power 75W
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 110V
Voltage - Input (Min) 82V
Max Output Current 15A
Output Voltage 5V
Voltage - Input (Max) 185V
Voltage - Isolation 3kV
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XXFM-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 86mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Max Power Dissipation 75W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, OVP
Size / Dimension 3.85Lx1.61W x 0.50 H 86.0mmx41.0mmx12.7mm
Series PH-S (75W)
Published 2013
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Number of Pins 6
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
