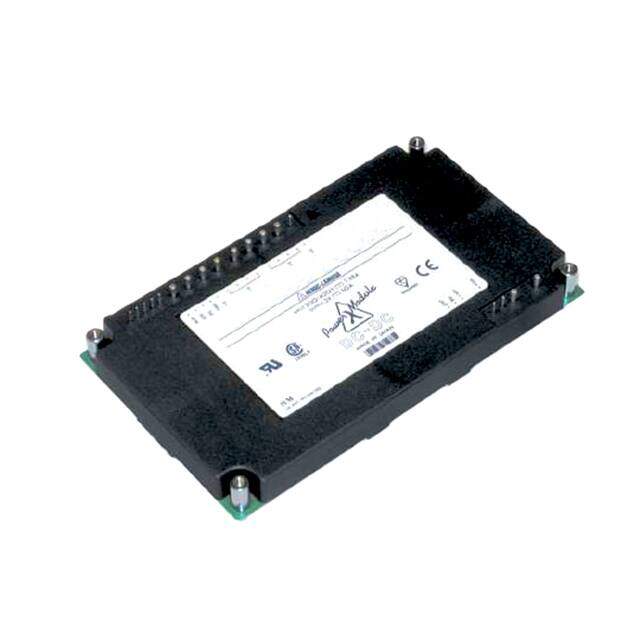

PH150S110-15
RoHS
/
Package Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 150W 15V 10A
PDF
/
Inventory: 4596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Number of Pins 10
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2014
Series PH-S (150W)
Size / Dimension 3.85Lx1.61W x 0.50 H 86.0mmx41.0mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 150W
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXFM-X
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Isolation 3kV
Voltage - Input (Max) 185V
Output Voltage 15V
Max Output Current 10A
Voltage - Input (Min) 82V
Input Voltage-Nom 110V
Trim/Adjustable Output YES
Output Current 10A
Output Power 150W
Control Features Enable, Active Low
Current - Output 1 10A
Dimensions
Height 12.7mm
Compliance
RoHS Status RoHS Compliant
