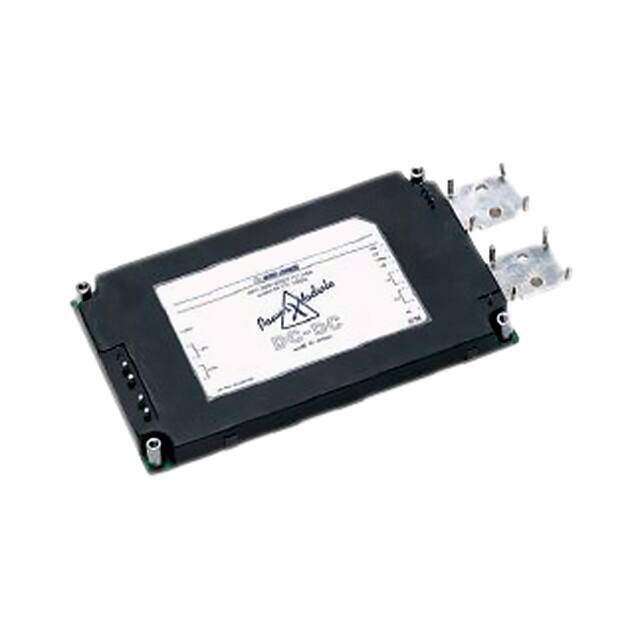

PH100S280-5
RoHS
/
Package Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 100W 5V 20A
PDF
/
Inventory: 8139
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 12.7mm
Technical
Isolation Isolated
Current - Output 1 20A
Control Features Enable, Active Low
Output Power 100W
Output Current 20A
Trim/Adjustable Output YES
Input Voltage-Nom 280V
Voltage - Input (Min) 200V
Max Output Current 20A
Output Voltage 5V
Voltage - Input (Max) 400V
Voltage - Isolation 3kV
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XXFM-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 86mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Max Power Dissipation 100W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, OTP, OVP
Size / Dimension 3.85Lx1.61W x 0.50 H 86.0mmx41.0mmx12.7mm
Series PH-S (100W)
Published 2000
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Number of Pins 8
Package / Case Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 2 weeks ago)
