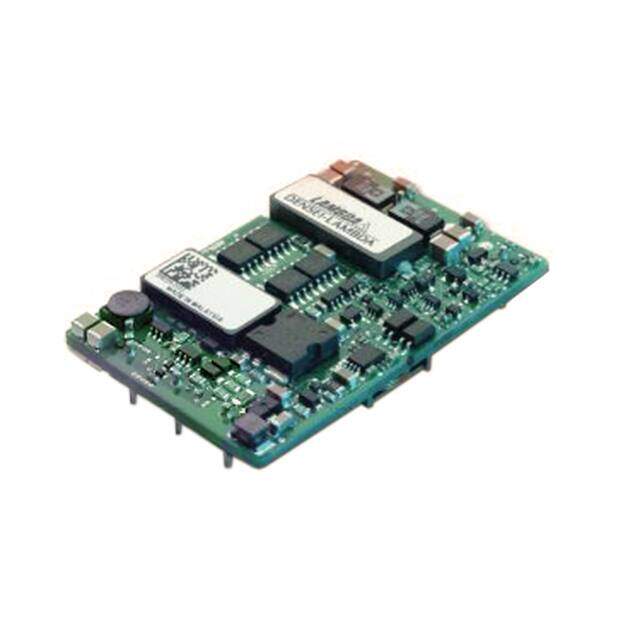

PAQ65D482518/CPV image
Favorite
PAQ65D482518/CPV image
Favorite

PAQ65D482518/CPV

TDK-Lambda Americas Inc.
RoHS
/
Package 7-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 37.5W 2.5V 1.8V 15A
PDF
/
Inventory: 1467
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 36.8mm
Height 10.16mm

Technical

Current - Output 1 15A
Voltage - Output 2 1.8V
Output Power 37.5W
Output Current 17A
Current - Output (Max) 15A 17A
Voltage - Input (Min) 36V
Max Output Current 17A
Output Voltage 2.5V
Voltage - Input (Max) 76V
Voltage - Isolation 1.5kV
Efficiency 86%
Approval Agency CE, CSA, EN, UL
Number of Outputs 2
Max Power Dissipation 38W
Power Rating 37.5W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.28Lx1.45W x 0.40 H 57.9mmx36.8mmx10.1mm
Series PAQ65D
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Number of Pins 7
Package / Case 7-DIP Module, 1/4 Brick
Mounting Type Through Hole
Mount Through Hole
