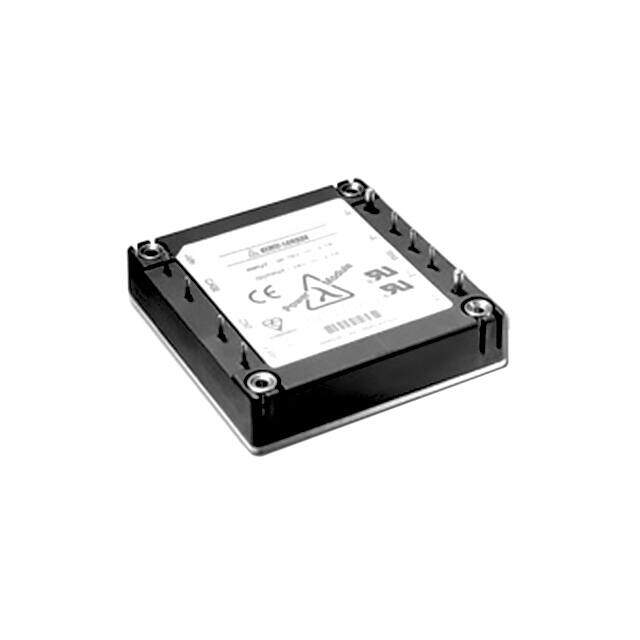

PAH200S48-28/V
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 201.6W 28V 7.2A
PDF
/
Inventory: 3098
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2001
Series PAH (200W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 200W
Additional Feature LG-MAX; WD-MAX
Subcategory Other Analog ICs
Power Rating 201.6W
Max Power Dissipation 201W
Technology HYBRID
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 76V
Output Voltage 28V
Max Output Current 7.2A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 7.2A
Output Power 201.6W
Control Features Enable, Active Low
Current - Output 1 7.2A
Total Power Output-Max 200W
Dimensions
Height 12.7mm
Width 57.9mm
Compliance
RoHS Status RoHS Compliant
