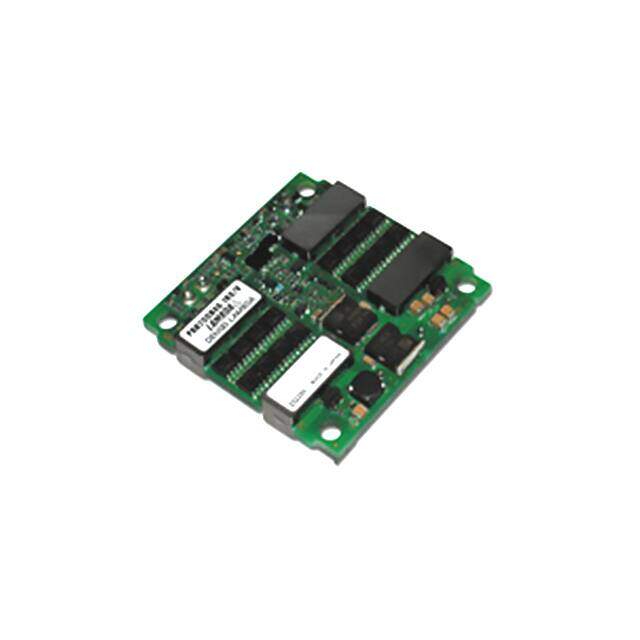

PAH200H481R8/BCV
RoHS
/
Package 14-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 108W 1.8V 60A
PDF
/
Inventory: 5710
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 57.912mm
Length 60.96mm
Height 12.7mm
Technical
Current - Output 1 60A
Max Input Voltage 76V
Min Input Voltage 36V
Control Features Enable, Active Low
Output Power 108W
Output Current 60A
Current - Output (Max) 60A
Voltage - Input (Min) 36V
Voltage - Output 1 1.8V
Max Output Current 60A
Output Voltage 1.8V
Voltage - Input (Max) 76V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 1
Max Power Dissipation 108W
Power (Watts) 200W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Series PAH200H (200W)
Published 2012
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Number of Pins 10
Package / Case 14-DIP Module
Mounting Type Through Hole
Mount Through Hole
