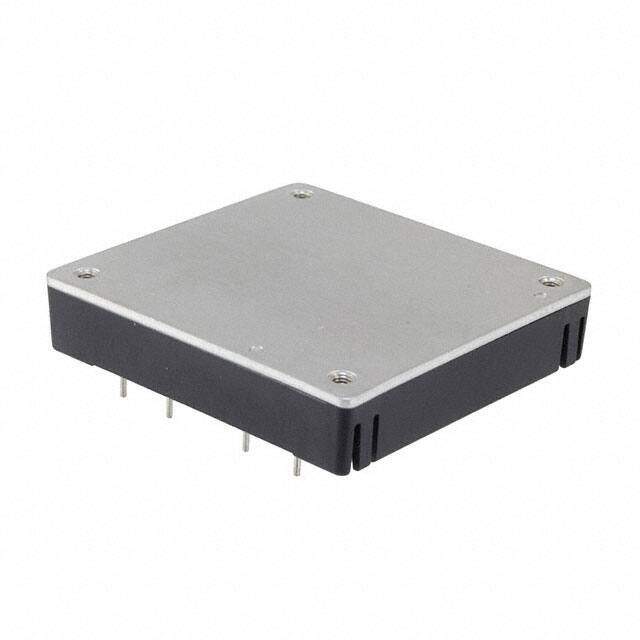

PAH150S48-12
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 150W 12V 12.5A
PDF
/
Buying Options
Total Price: USD $289.61
Unit Price: USD $289.6094
≥1 USD $289.6094
Inventory: 509
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 12.7mm
Technical
Current - Output 1 12.5A
Control Features Enable, Active Low
Output Power 150W
Output Current 12.5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 12.5A
Output Voltage 12V
Voltage - Input (Max) 76V
Voltage - Isolation 1.5kV
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology HYBRID
Max Power Dissipation 150W
Subcategory Other Analog ICs
Additional Feature LG-MAX; WD-MAX
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Series PAH (150W)
Published 2012
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Number of Pins 9
Package / Case 9-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
Factory Lead Time 15 Weeks
