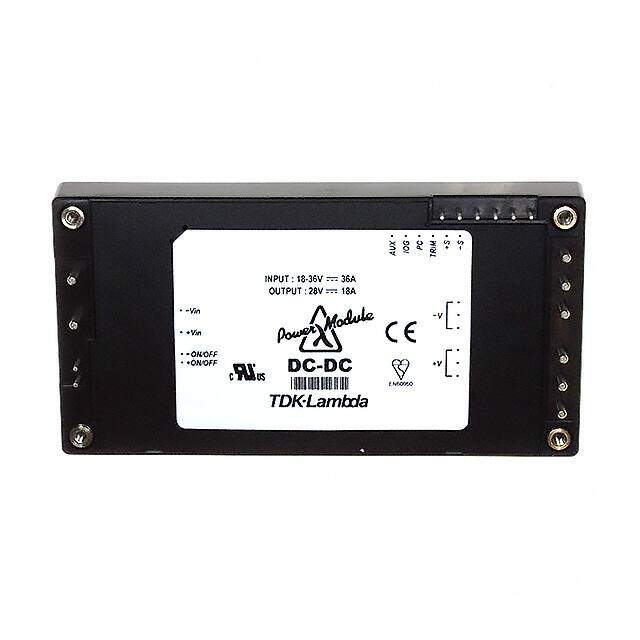

PAF500F48-28
RoHS
RoHS compliant
RoHS compliantPackage Full Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 504W 28V 18A
PDF
/
Buying Options
Total Price: USD $236.3
Unit Price: USD $236.2976
≥1 USD $236.2976
≥10 USD $221.52328
≥100 USD $210.558656
Inventory: 31
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Full Brick
Number of Pins 16
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2000
Series PAF500F
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Feature Remote On/Off, OCP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 500W
Subcategory Other Analog ICs
Max Power Dissipation 504W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency CE
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 76V
Output Voltage 28V
Max Output Current 18A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 18A
Output Power 504W
Control Features Enable, Active Low
Current - Output 1 18A
Dimensions
Height 12.7mm
Compliance
RoHS Status RoHS Compliant
