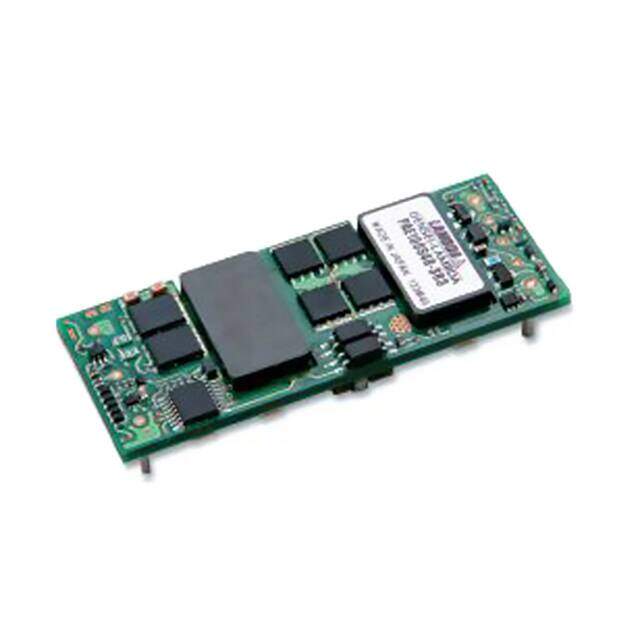

PAE50S48-2R5/V
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 52W 2.5V 18A
PDF
/
Inventory: 3335
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series PAE50
Size / Dimension 2.28Lx0.90W x 0.33 H 57.9mmx22.8mmx8.5mm
Feature Remote On/Off, OCP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Max Power Dissipation 45W
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 76V
Output Voltage 2.5V
Max Output Current 18A
Voltage - Output 1 2.5V
Voltage - Input (Min) 36V
Current - Output (Max) 18A
Output Current 18A
Output Power 52W
Control Features Enable, Active Low
Min Input Voltage 36V
Max Input Voltage 76V
Current - Output 1 18A
Dimensions
Height 8.382mm
Length 22.86mm
Width 57.912mm
Compliance
RoHS Status RoHS Compliant
