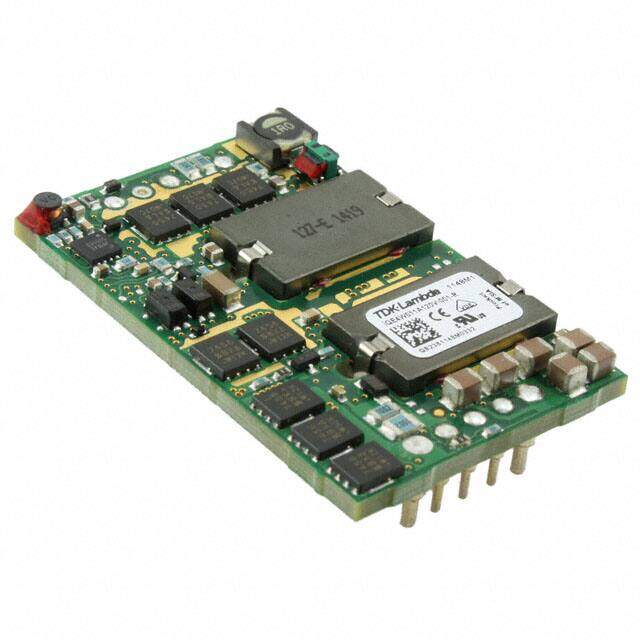

IQE24030A033V-007-R
RoHS
/
Package Quarter Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V
PDF
/
Inventory: 3050
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 36.8mm
Length 57.9mm
Technical
Total Power Output-Max 99W
Current - Output (Max) 30A
Trim/Adjustable Output YES
Voltage - Input (Min) 18V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 90%
Approval Agency CB, UL, VDE
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 99W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.28Lx1.45W x 0.41 H 57.9mmx36.8mmx10.4mm
Series iQE (204W)
Published 2016
Operating Temperature -40°C~125°C
Physical
Surface Mount NO
Package / Case Quarter Brick
Mounting Type Through Hole
