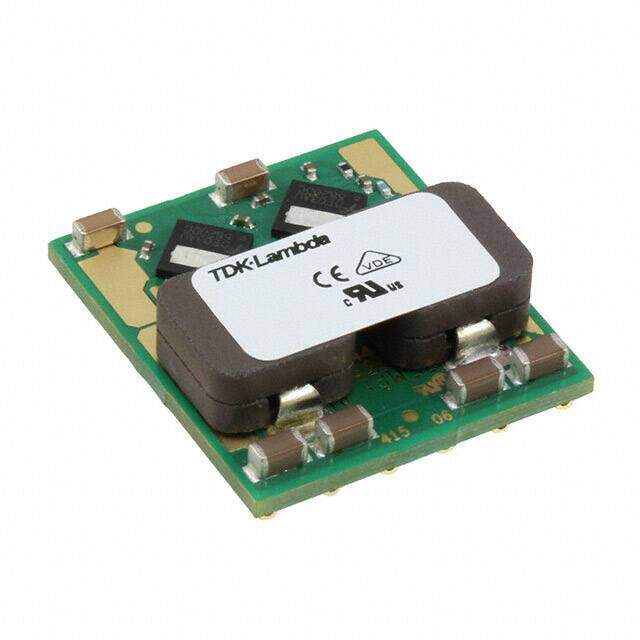

IJB12060A006V-003-R
RoHS
RoHS compliant
RoHS compliantPackage 28-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.6V to 2V 60A 28-Pin SMD
PDF
/
Inventory: 4353
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case 28-SMD Module
Technical
Operating Temperature -40°C~120°C
Packaging Cut Tape (CT)
Published 2016
Series iJB (120W)
Size / Dimension 1.06Lx0.95W x 0.38 H 26.8mmx24.1mmx9.7mm
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Non-Isolated PoL Module, Digital
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 14V
Voltage - Output 1 0.6V~2V
Voltage - Input (Min) 8V
Current - Output (Max) 60A
Control Features Enable, Active Low
Dimensions
Height 9.68mm
Length 26.8mm
Width 24.08mm
Compliance
RoHS Status RoHS Compliant
