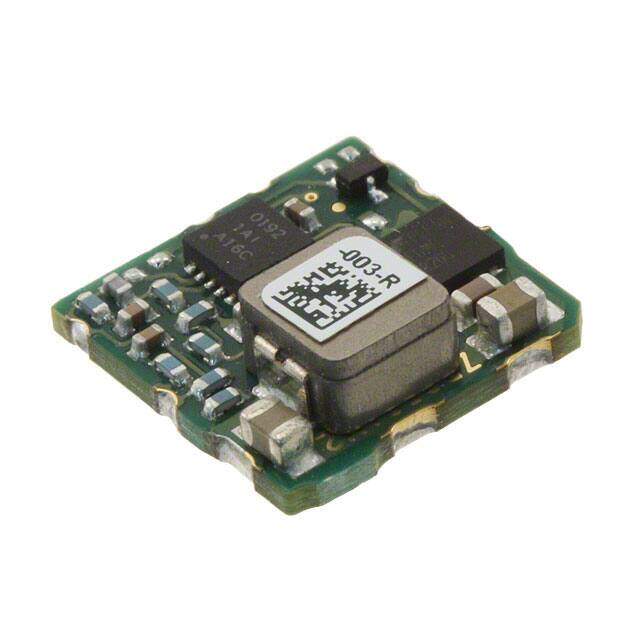

ICF05003A006V007R
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Non-Isolated DC/DC Converters 5Vin 0.6-3.63Vout 3A SMT LGA Neg Logic
PDF
/
Inventory: 5475
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Lifecycle Status PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-SMD Module
Weight 1.500002g
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Published 2015
Series iCF (17W)
Size / Dimension 0.48Lx0.48W x 0.18 H 12.2mmx12.2mmx4.5mm
Feature Remote On/Off, OCP
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 11W
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 11W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CB, CSA, UL, VDE
Efficiency 92%
Voltage - Input (Max) 5.5V
Max Output Current 3A
Voltage - Output 1 0.6V~3.63V
Voltage - Input (Min) 2.4V
Control Features Enable, Active Low
Dimensions
Height 4.572mm
Compliance
RoHS Status RoHS Compliant
