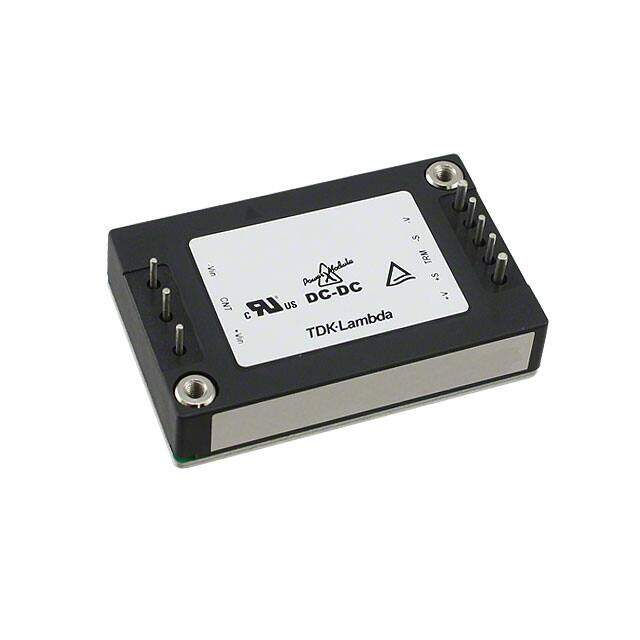

CN100A11024/CO2
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 24V 4.2A 100.8W 8-Pin Quarter-Brick
PDF
/
Inventory: 4515
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 36.83mm
Length 57.912mm
Height 12.7mm
Technical
Max Input Voltage 160V
Min Input Voltage 60V
Output Power 100.8W
Output Current 4.2A
Current - Output (Max) 4.2A
Voltage - Input (Min) 60V
Voltage - Output 1 24V
Max Output Current 4.2A
Output Voltage 24V
Voltage - Input (Max) 160V
Voltage - Isolation 3kV
Efficiency 88%
Number of Outputs 1
Max Power Dissipation 101W
Power (Watts) 101W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, UVLO
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Series CN-A110 (100W)
Published 2015
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Number of Pins 8
Package / Case 8-DIP Module, 1/4 Brick
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
