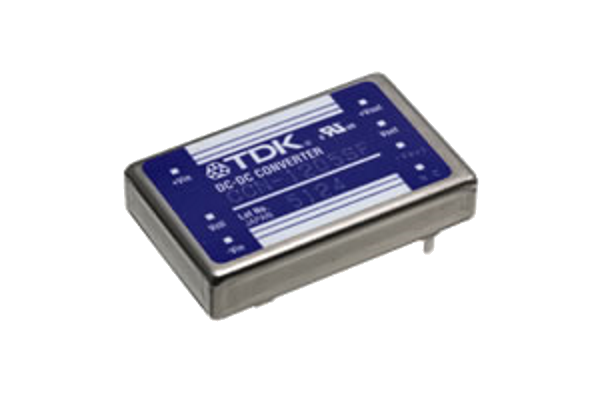

CCN-2412SF
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 6W
PDF
/
Buying Options
Total Price: USD $295.33
Unit Price: USD $295.3265
≥1 USD $295.3265
Inventory: 19
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Technical
Operating Temperature -20°C~70°C With Derating
Published 2008
Series CCN (6W)
Size / Dimension 1.61Lx1.02W x 0.33 H 40.9mmx25.9mmx8.4mm
Feature OCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Applications ITE (Commercial)
Power (Watts) 6W
Depth 8.5mm
Number of Outputs 1
Efficiency 85%
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Current - Output (Max) 500mA
Output Current 500mA
Dimensions
Length 25.8mm
Compliance
RoHS Status RoHS Compliant
