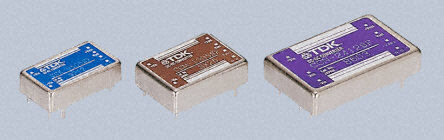

CCN-0505SF
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 5W
PDF
/
Inventory: 2967
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 25.8mm
Technical
Output Current 1A
Current - Output (Max) 1A
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 9V
Voltage - Isolation 500V
Efficiency 74%
Number of Outputs 1
Depth 8.5mm
Power (Watts) 5W
Applications ITE (Commercial)
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP
Size / Dimension 1.61Lx1.02W x 0.33 H 40.9mmx25.9mmx8.4mm
Series CCN (6W)
Published 2003
Operating Temperature -20°C~70°C With Derating
Physical
Package / Case 7-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
