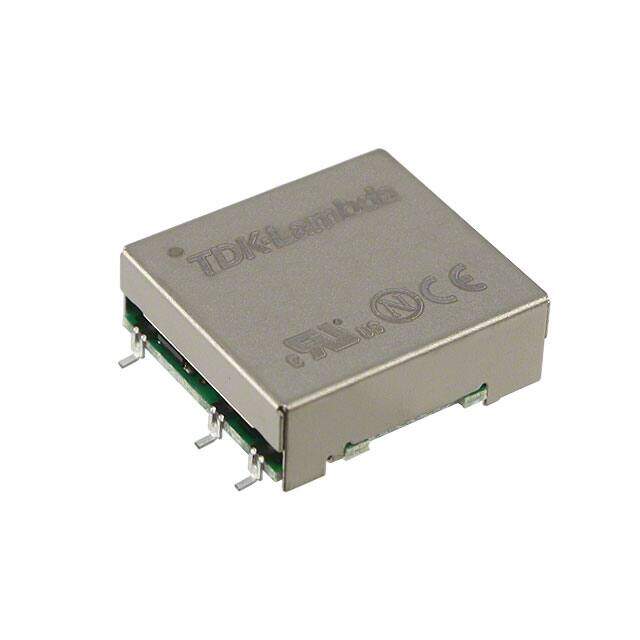

CC6-4803SR-E
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 5W SNGL 48V 3.3V SMD
PDF
/
Buying Options
Total Price: USD $15.56
Unit Price: USD $15.5584
≥1 USD $15.5584
≥10 USD $14.8632
≥100 USD $13.8424
≥500 USD $13.2616
Inventory: 34
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 210.058mm
Length 93.472mm
Height 8.89mm
Technical
Nominal Input Voltage 48V
Current - Output 1 1.2A
Max Input Voltage 76V
Min Input Voltage 36V
Control Features Enable, Active Low
Output Power 4W
Output Current 1.2A
Current - Output (Max) 1.2A
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Max Output Current 1.2A
Output Voltage 3.3V
Voltage - Input (Max) 76V
Voltage - Isolation 500V
Number of Outputs 1
Max Power Dissipation 6W
Power Rating 6W
Power (Watts) 6W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.90Lx0.83W x 0.35 H 22.9mmx21.1mmx8.8mm
Series CC-E (6W)
Published 2005
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 5.8g
Number of Pins 7
Package / Case 7-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Factory Lead Time 12 Weeks
