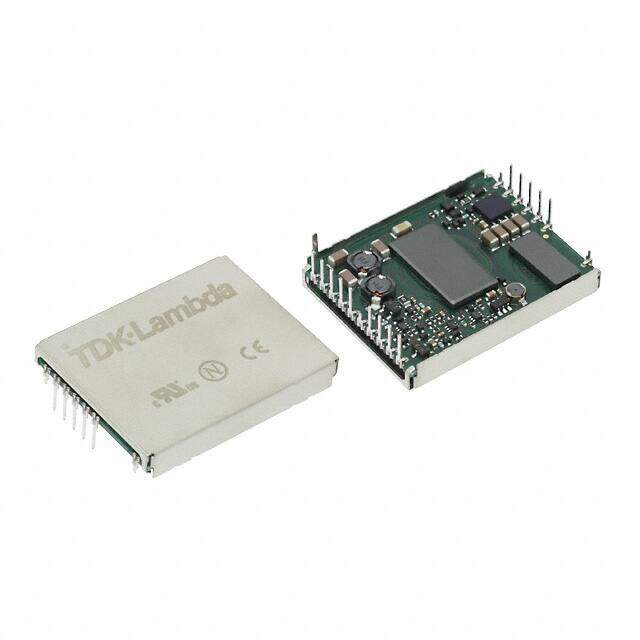

CC30-4805SFH-E image
Favorite
CC30-4805SFH-E image
Favorite

CC30-4805SFH-E

TDK-Lambda Americas Inc.
RoHS
/
Package 20-DIP Module, 17 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 48V 5V 6A 30W PCB
PDF
/
Inventory: 1000
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 20-DIP Module, 17 Leads

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Published 2008
Series CC-P-E (30W)
Size / Dimension 1.51Lx1.32W x 0.33 H 38.4mmx33.5mmx8.3mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 30W
Power Rating 30W
Max Power Dissipation 30W
Depth 31.6mm
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1kV
Voltage - Input (Max) 76V
Output Voltage 5V
Max Output Current 6A
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Current - Output (Max) 6A
Output Current 6A
Output Power 30W
Control Features Enable, Active Low
Min Input Voltage 36V
Max Input Voltage 76V
Current - Output 1 6A
Nominal Input Voltage 48V
Max Output Power 30W
Nominal Output Voltage 5V
Max Input Voltage (DC) 76V
Min Input Voltage (DC) 36V

Dimensions

Height 8.382mm
Length 249.936mm
Width 85.09mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
