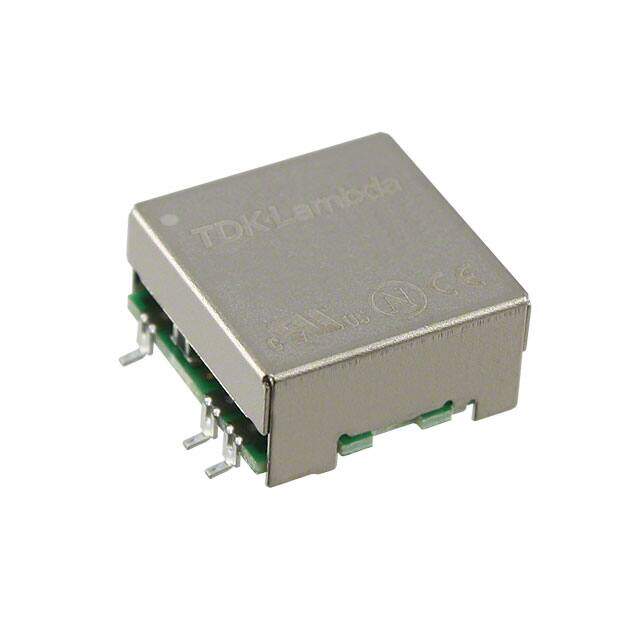

CC1R5-1203SR-E
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1.5W SNG 12V 3.3V SMD
PDF
/
Buying Options
Total Price: USD $9.46
Unit Price: USD $9.46
≥1 USD $9.46
≥10 USD $9.0024
≥100 USD $8.4304
≥500 USD $8.0432
Inventory: 154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 7-SMD Module
Number of Pins 7
Weight 3.2g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2005
Series CC-E (1.5W)
Size / Dimension 0.65Lx0.65W x 0.35 H 16.5mmx16.6mmx8.8mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 1W
Power Rating 1.5W
Max Power Dissipation 1.5W
Depth 16.51mm
Number of Outputs 1
Voltage - Isolation 500V
Voltage - Input (Max) 18V
Output Voltage 3.3V
Max Output Current 400mA
Voltage - Output 1 3.3V
Voltage - Input (Min) 9V
Current - Output (Max) 400mA
Output Current 400mA
Output Power 1.5W
Control Features Enable, Active Low
Min Input Voltage 9V
Max Input Voltage 18V
Current - Output 1 400mA
Nominal Input Voltage 12V
Max Output Power 1.5W
Isolation Isolated
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 8.89mm
Length 16.51mm
Width 16.51mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
