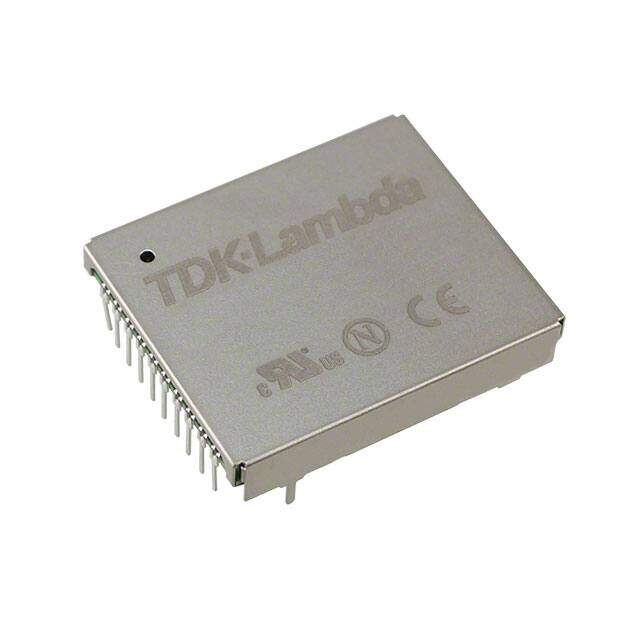

CC15-2403SF-E
RoHS
/
Package 17-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W SNGL 24V 3.3V PCB
PDF
/
Inventory: 5233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 17-DIP Module
Number of Pins 7
Weight 12.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2005
Series CC-E (15W)
Size / Dimension 1.50Lx1.26W x 0.28 H 38.1mmx32.1mmx7.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 14W
Power Rating 15W
Max Power Dissipation 14.85W
Depth 32.11mm
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 3.3V
Max Output Current 4.5A
Voltage - Output 1 3.3V
Voltage - Input (Min) 18V
Current - Output (Max) 4.5A
Output Current 4.5A
Output Power 15W
Control Features Enable, Active High
Min Input Voltage 18V
Max Input Voltage 36V
Current - Output 1 4.5A
Nominal Input Voltage 24V
Max Output Power 15W
Isolation Isolated
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 7.112mm
Length 35.56mm
Width 22.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
