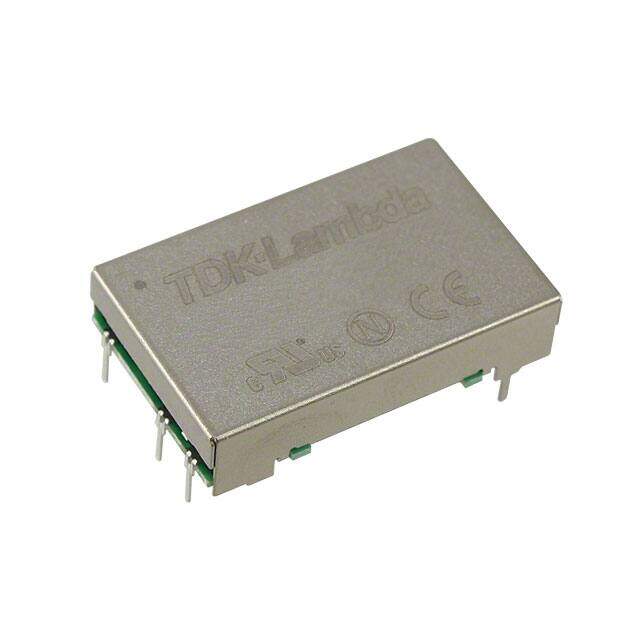

CC10-2412SF-E
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12-15V 10W
PDF
/
Buying Options
Total Price: USD $219.6
Unit Price: USD $219.602
≥1 USD $219.602
≥10 USD $196.88465
Inventory: 148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Number of Pins 7
Weight 10g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2005
Series CC-E (10W)
Size / Dimension 1.40Lx0.89W x 0.33 H 35.6mmx22.6mmx8.5mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 10W
Power Rating 10W
Max Power Dissipation 10W
Depth 35.56mm
Number of Outputs 1
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 12V
Max Output Current 1A
Voltage - Output 1 12V~15V
Voltage - Input (Min) 18V
Current - Output (Max) 1A
Output Current 1A
Output Power 10W
Control Features Enable, Active Low
Min Input Voltage 18V
Max Input Voltage 36V
Current - Output 1 1A
Nominal Input Voltage 24V
Max Output Power 10W
Isolation Isolated
Nominal Output Voltage 12V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 8.5mm
Length 35.56mm
Width 22.6mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
