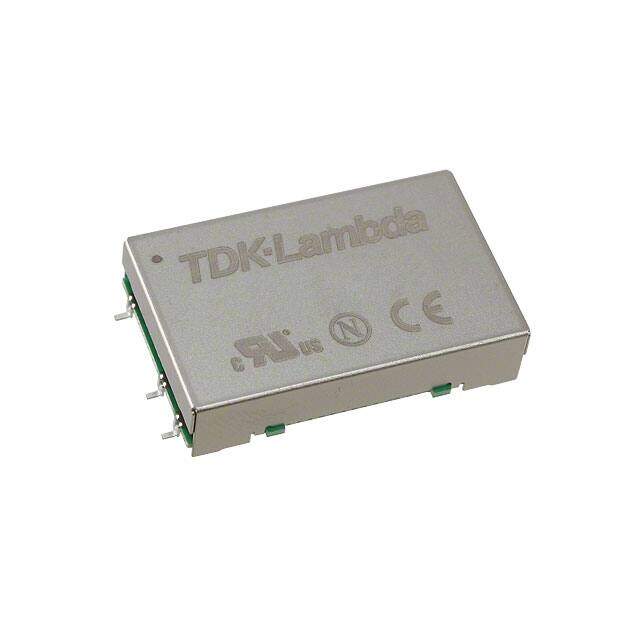

CC10-0512SR-E image
Favorite
CC10-0512SR-E image
Favorite
RoHS
RoHS RoHS compliant
Package 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 10W SNGL 5V 12V SMD
PDF
/
Buying Options
Total Price: USD $25.6
Unit Price: USD $25.5992
≥1 USD $25.5992
≥10 USD $24.8072
≥100 USD $23.1968
≥500 USD $22.0352
Inventory: 115
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 101.6mm
Length 50.8mm
Height 8.89mm

Technical

Isolation Isolated
Nominal Input Voltage 5V
Current - Output 1 800mA
Max Input Voltage 9V
Min Input Voltage 4.5V
Control Features Enable, Active Low
Output Power 10W
Output Current 1A
Current - Output (Max) 800mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V~15V
Max Output Current 800mA
Output Voltage 12V
Voltage - Input (Max) 9V
Voltage - Isolation 500V
Number of Outputs 1
Depth 22.61mm
Max Power Dissipation 10W
Power Rating 10W
Power (Watts) 10W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.40Lx0.89W x 0.35 H 35.6mmx22.6mmx8.8mm
Series CC-E (10W)
Published 2005
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 10g
Number of Pins 7
Package / Case 7-SMD Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Factory Lead Time 12 Weeks
