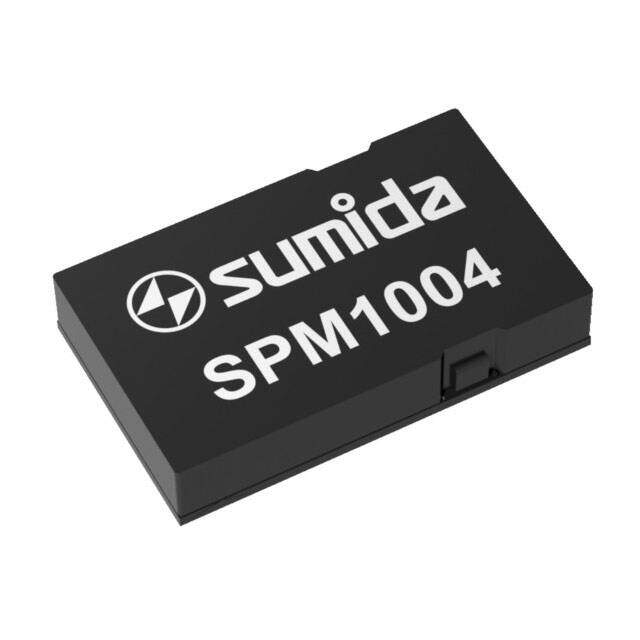

SPM1004-5V0C
RoHS
RoHS compliant
RoHS compliantPackage 73-BLGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
POWER SUPPLY IN INDUCTOR
PDF
/
Inventory: 8028
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.2mm
Height 2.794mm
Technical
Total Power Output-Max 33W
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Max Output Current 6A
Output Voltage 5V
Voltage - Input (Max) 15V
Efficiency 94.3%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BU
Terminal Position UNSPECIFIED
Technology HYBRID
Additional Feature LG-MAX; WD-MAX
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 73
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Feature OCP, OTP, OVP, UVLO
Size / Dimension 0.59Lx0.35W x 0.11 H 15.0mmx9.0mmx2.8mm
Series SPM1004
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 73
Package / Case 73-BLGA Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
