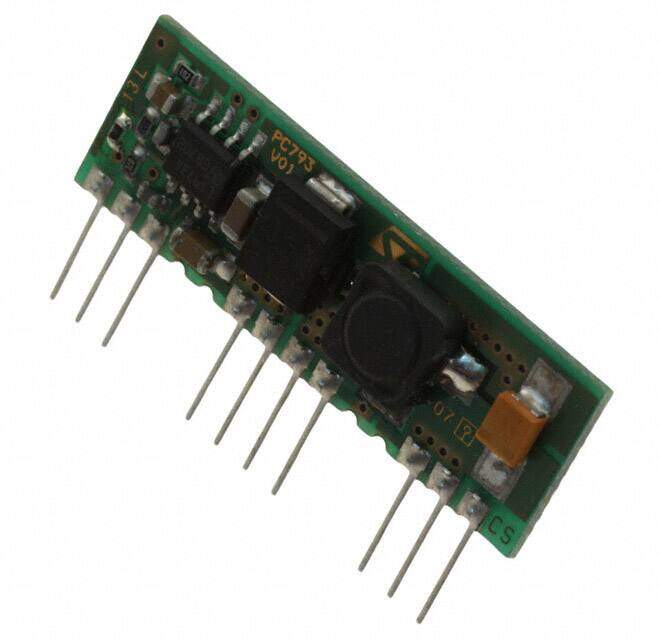

GS-R24FV0001.8
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
STMicroelectronics GS-R24FV0001.8, Step Down DC-DC Converter, 1.8A, 1.2355.5 V, 10-Pin
PDF
/
Inventory: 8781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 12.7mm
Technical
Switching Frequency 500kHz
Switcher Configuration BUCK
Current - Output 1 1.8A
Output Power 10W
Output Current 1.8A
Input Voltage-Nom 24V
Voltage - Input (Min) 16V
Operating Supply Voltage 35V
Voltage - Output 1 1.235V~5.5V
Max Output Current 1.8A
Output Voltage 5.5V
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number GS-R24F
Number of Functions 1
Terminal Position SINGLE
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 1.52Lx0.18W x 0.50 H 38.7mmx4.5mmx12.7mm
Series GS-R24FP
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Number of Pins 10
Package / Case 10-SIP Module
Mounting Type Through Hole
Mount Through Hole
