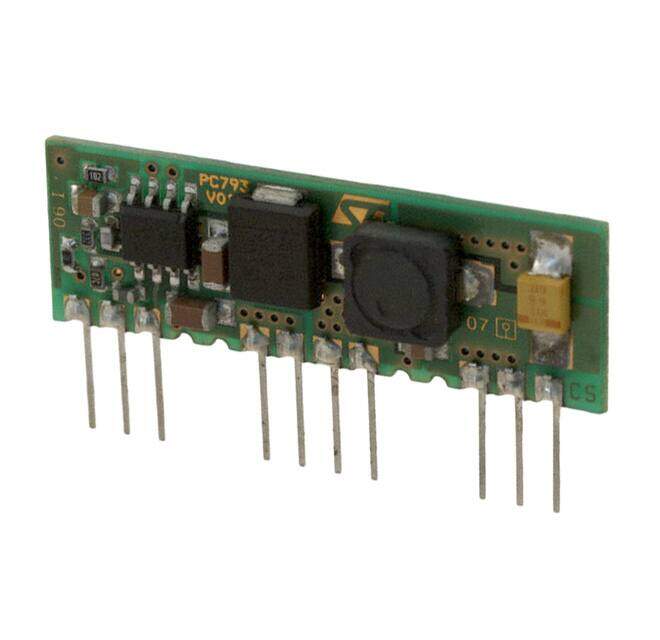

GS-R12FV0001.9
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Non-Isolated DC/DC Converters 1.9 A DC-DC CONV MODULE
PDF
/
Inventory: 6829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 10-SIP Module
Number of Pins 10
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series GS-R12FP
Size / Dimension 1.52Lx0.18W x 0.50 H 38.7mmx4.5mmx12.7mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Terminal Position SINGLE
Number of Functions 1
Base Part Number GS-R12F
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 83%
Output Voltage 5.5V
Max Output Current 1.9A
Voltage - Output 1 1.235V~5.5V
Operating Supply Voltage 15V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Output Current 1.9A
Output Power 10W
Current - Output 1 1.9A
Nominal Input Voltage 12V
Switcher Configuration BUCK
Switching Frequency 500kHz
Dimensions
Height 12.7mm
Compliance
RoHS Status ROHS3 Compliant
