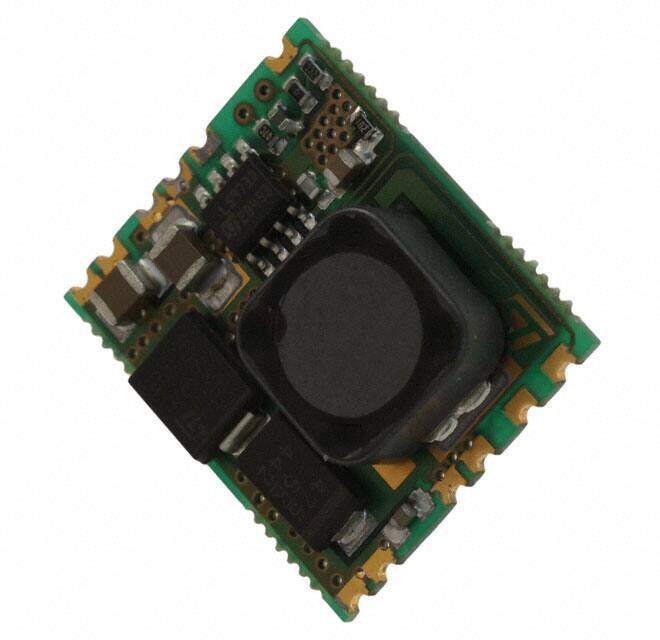

GS-R12F0002.0 image
Favorite
GS-R12F0002.0 image
Favorite

GS-R12F0002.0

STMicroelectronics
RoHS
RoHS RoHS compliant
Package 12-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER MODULE DC-DC 2A 12-SMD
PDF
/
Inventory: 2607
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 7.112mm

Technical

Switching Frequency 250kHz
Switcher Configuration BUCK
Nominal Input Voltage 12V
Current - Output 1 2A
Output Current 2A
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Operating Supply Voltage 15V
Voltage - Output 1 1.235V~5.5V
Max Output Current 2A
Output Voltage 5.5V
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP
Size / Dimension 1.05Lx0.89W x 0.28 H 26.7mmx22.6mmx7.0mm
Series GS-R12F
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Number of Pins 12
Package / Case 12-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
