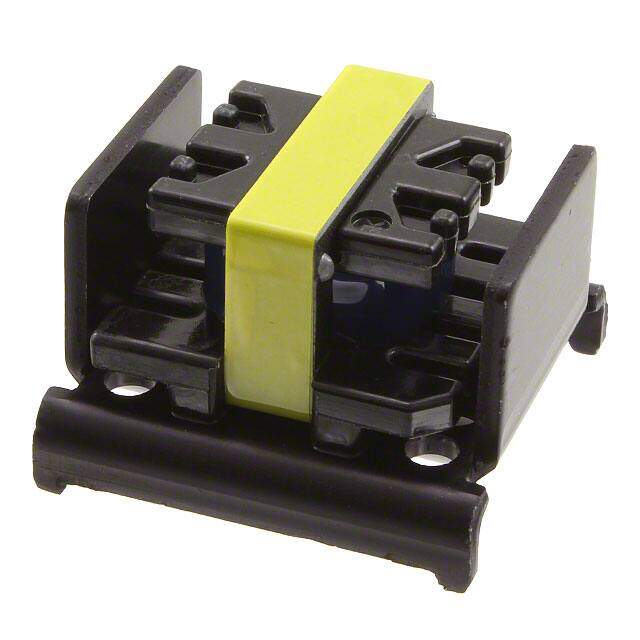

SI-8501L
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Switching Mode Regulator 5-Pin
PDF
/
Buying Options
Total Price: USD $77.1
Unit Price: USD $77.102
≥1 USD $77.102
≥10 USD $74.6928
≥100 USD $72.28265
≥500 USD $69.87345
≥1000 USD $62.6449
Inventory: 1273
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Module
Surface Mount NO
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2010
Size / Dimension 1.02Lx1.02W x 0.71 H 26.0mmx26.0mmx18.0mm
Feature OCP, OTP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDSS-P5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 83%
Voltage - Input (Max) 33V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 7V
Input Voltage-Nom 20V
Current - Output (Max) 1A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 60kHz
Compliance
RoHS Status RoHS Compliant
