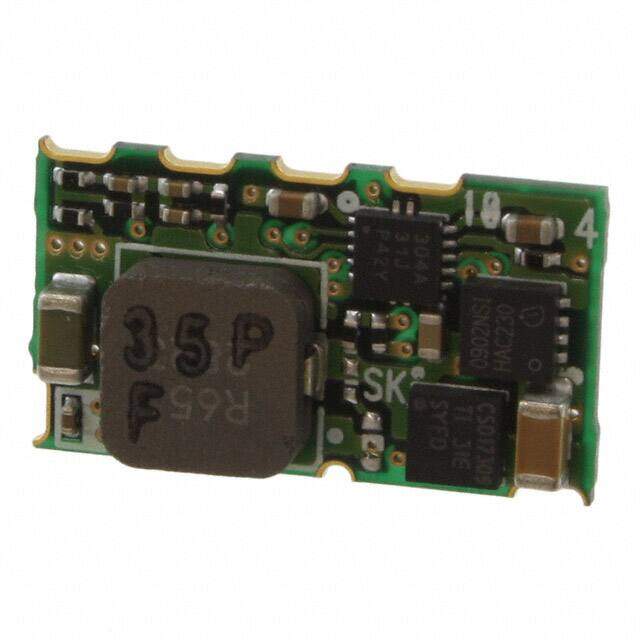

BR204
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.6-5.5V 55W
PDF
/
Inventory: 6409
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 0.80Lx0.45W x 0.17 H 20.3mmx11.4mmx4.2mm
Feature Remote On/Off, OCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Non-Isolated PoL Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 55W
Max Power Dissipation 55W
Number of Outputs 1
Efficiency 95.1%
Voltage - Input (Max) 13.2V
Max Output Current 10A
Voltage - Output 1 1.6V~5.5V
Voltage - Input (Min) 10.8V
Current - Output (Max) 10A
Control Features Enable, Active High
Min Input Voltage 10.8V
Max Input Voltage 13.2V
Dimensions
Height 4.318mm
Length 20.32mm
Width 11.43mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
