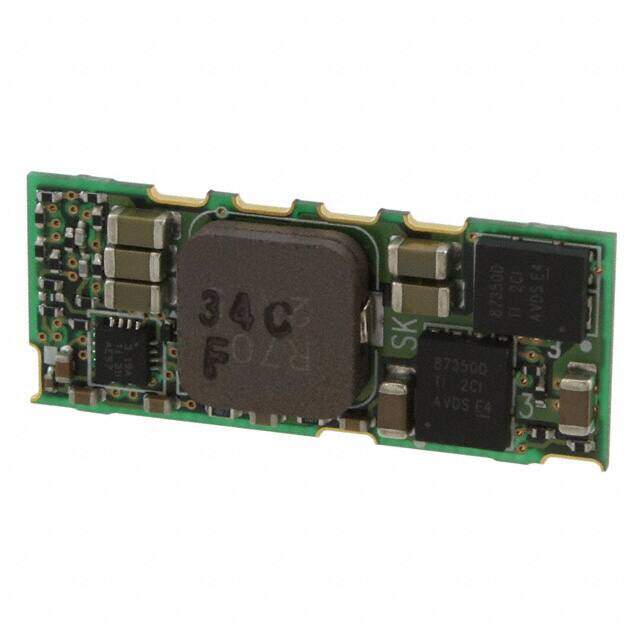

BR203
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.6-3.63V 73W
PDF
/
Inventory: 3898
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 13.462mm
Length 33.02mm
Height 4.318mm
Technical
Max Input Voltage 13.2V
Min Input Voltage 10.8V
Control Features Enable, Active High
Current - Output (Max) 20A
Voltage - Input (Min) 10.8V
Voltage - Output 1 1.6V~3.63V
Max Output Current 20A
Voltage - Input (Max) 13.2V
Efficiency 93.4%
Number of Outputs 1
Max Power Dissipation 73W
Power (Watts) 73W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Non-Isolated PoL Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP
Size / Dimension 1.30Lx0.53W x 0.17 H 33.0mmx13.5mmx4.2mm
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 10-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
