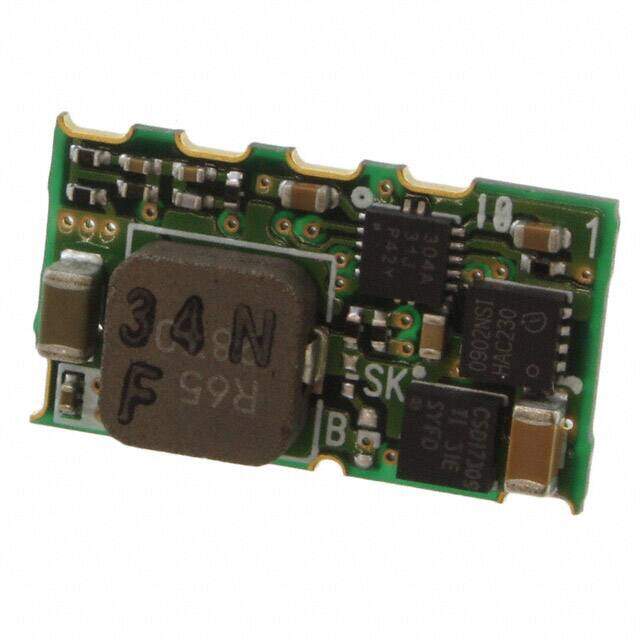

BR201
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.6-3.63V 36W
PDF
/
Buying Options
Total Price: USD $12.34
Unit Price: USD $12.3376
≥1 USD $12.3376
≥10 USD $12.24784
≥100 USD $12.15456
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 4.318mm
Technical
Forward Voltage-Max 0.88V
Non-rep Pk Forward Current-Max 280A
JEDEC-95 Code TO-220AC
Number of Phases 1
Control Features Enable, Active High
Configuration SINGLE
Voltage - Input (Min) 7V
Number of Elements 1
Voltage - Output 1 1.6V~3.63V
Max Output Current 10A
Voltage - Input (Max) 14V
Efficiency 93.8%
Number of Outputs 1
JESD-30 Code R-PSFM-T2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Technology SCHOTTKY
Max Power Dissipation 36W
Additional Feature FREE WHEELING DIODE
Power (Watts) 36W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP
Size / Dimension 0.80Lx0.45W x 0.17 H 20.3mmx11.4mmx4.2mm
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Diode Element Material SILICON
Package / Case 10-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
