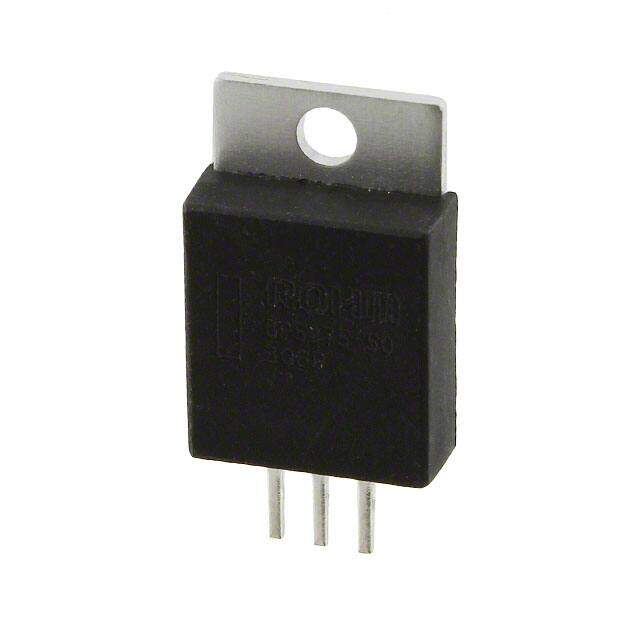

BP5275-33
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.65W
PDF
/
Inventory: 8061
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 3-SIP
Number of Pins 3
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2011
Series BP5275
Size / Dimension 0.54Lx0.20W x 0.91 H 13.8mmx5.2mmx23.0mm
Feature SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 1.65W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 83%
Output Voltage 3.3V
Output Type Fixed
Max Output Current 500mA
Voltage - Input (Min) 5V
Output Current 500mA
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 4V
Dimensions
Height 23.114mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
