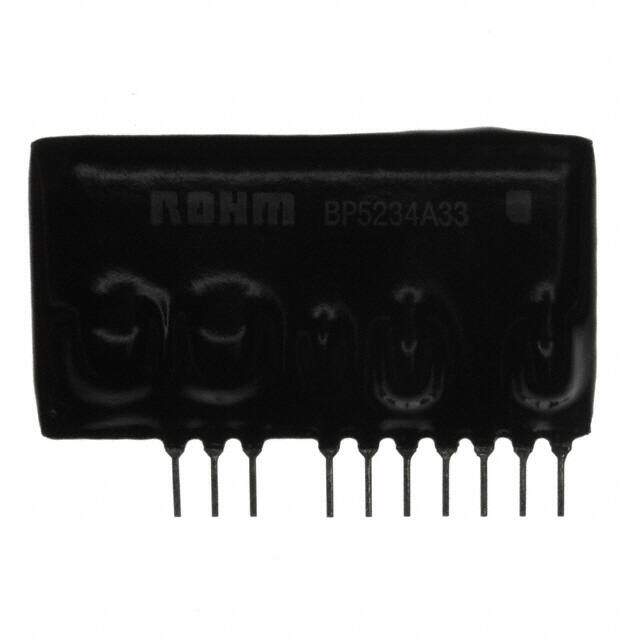

BP5234A33
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 4A
PDF
/
Inventory: 8291
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 10-SIP Module, 9 Leads
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2007
Size / Dimension 1.52Lx0.49W x 0.93 H 38.5mmx12.5mmx23.5mm
JESD-609 Code e2
Feature Remote On/Off, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN COPPER
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 5W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number BP523*
JESD-30 Code R-XSMA-T5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 93%
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Output Type Fixed
Max Output Current 4A
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Topology Boost
Current - Output 1 4A
Nominal Input Voltage 5V
Dimensions
Height 23.622mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
