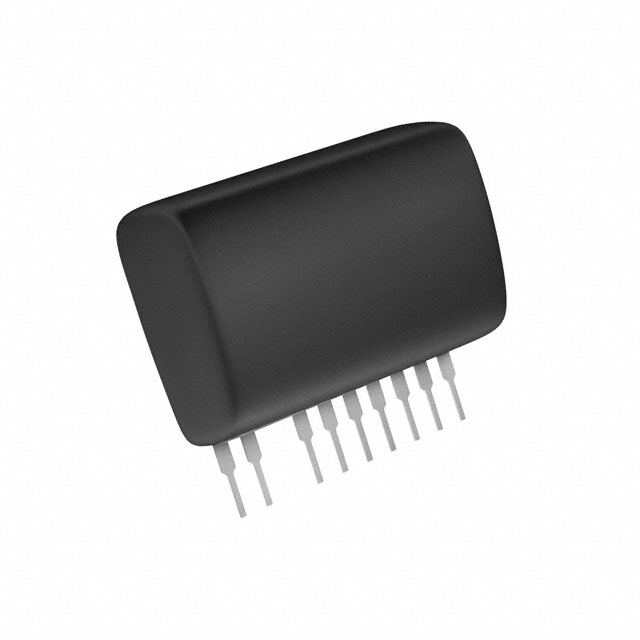

BP5232A25
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5V 2A
PDF
/
Inventory: 6165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 10-SIP Module, 9 Leads
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2007
Size / Dimension 1.10Lx0.47W x 0.77 H 28.0mmx12.0mmx19.5mm
JESD-609 Code e2
Feature Remote On/Off, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN COPPER
Applications ITE (Commercial)
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number BP523*
JESD-30 Code R-XSMA-T5
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 5.5V
Output Voltage 2.5V
Output Type Fixed
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 2A
Synchronous Rectifier No
Dimensions
Height 12mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
