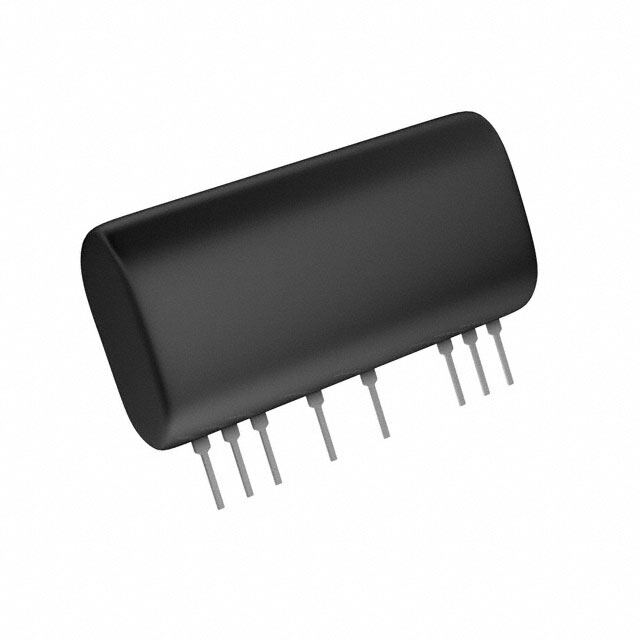

BP5226-18
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 18V 0.5A
PDF
/
Buying Options
Total Price: USD $11.89
Unit Price: USD $11.885765
≥1 USD $11.885765
≥10 USD $11.212981
≥100 USD $10.578288
≥500 USD $9.979518
≥1000 USD $9.41464
Inventory: 975
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP, 8 Leads
Number of Pins 8
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2010
Size / Dimension 1.34Lx0.32W x 0.69 H 34.0mmx8.1mmx17.4mm
JESD-609 Code e2
Feature Remote On/Off
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN COPPER
Applications ITE (Commercial)
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number BP5226-18
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90%
Voltage - Input (Max) 46V
Output Voltage 19V
Output Type Fixed
Max Output Current 1.3A
Voltage - Output 1 18V
Voltage - Input (Min) 20V
Trim/Adjustable Output NO
Interface On/Off
Output Configuration Low Side
Output Current 500mA
Total Power Output-Max 9.5W
Fault Protection Over Temperature, Over Voltage
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
