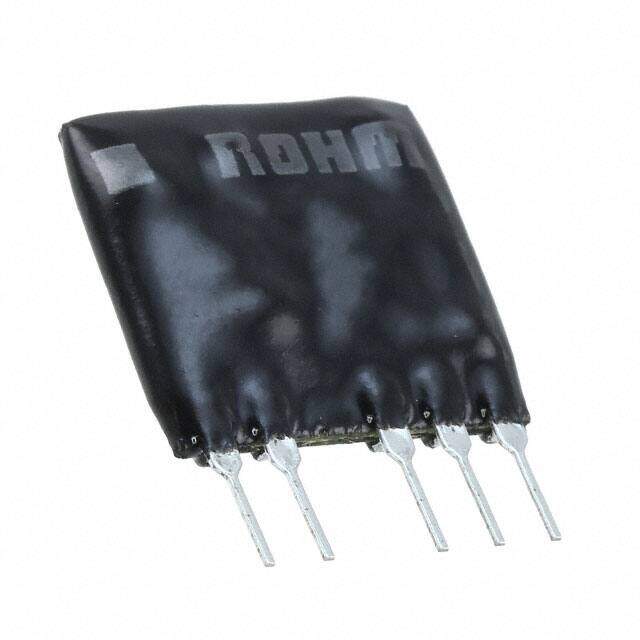

BP5224-33
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V
PDF
/
Inventory: 6596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 18.034mm
Technical
Trim/Adjustable Output NO
Input Voltage-Nom 16V
Voltage - Input (Min) 7V
Voltage - Output 1 3.3V
Max Output Current 300mA
Output Voltage 3.3V
Voltage - Input (Max) 18V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T5
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish Tin/Copper (Sn/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OCP
JESD-609 Code e2
Size / Dimension 0.70Lx0.38W x 0.71 H 17.8mmx9.7mmx18.1mm
Published 2010
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
