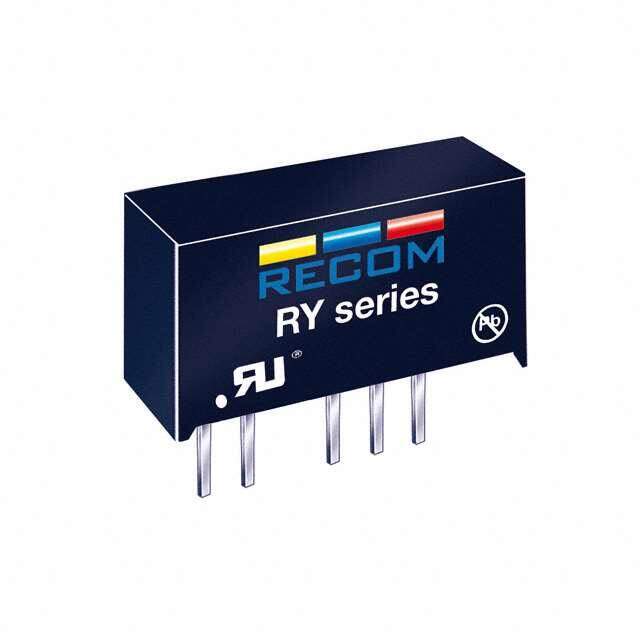

RY-2412S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 24VIN 12VOUT
PDF
/
Inventory: 1620
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Number of Pins 5
Weight 2.8g
Technical
Operating Temperature -40°C~70°C
Packaging Tube
Series ECONOLINE RY (1W)
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 7.05mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 66%
Voltage - Isolation 1kV
Voltage - Input (Max) 26.4V
Output Voltage 12V
Max Output Current 84mA
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 84mA
Output Power 1W
Max Output Voltage 12V
Total Power Output-Max 1W
Nominal Input Voltage 24V
Isolation Isolated
Dimensions
Height 10.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
