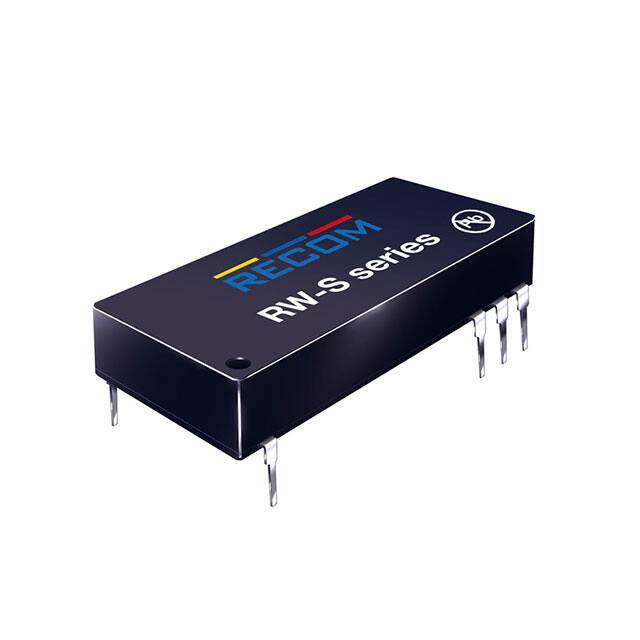

RW-4809S
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9V 3W
PDF
/
Inventory: 3739
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 32.26mm
Height 7mm
Technical
Nominal Input Voltage 48V
Total Power Output-Max 3W
Max Output Voltage 9V
Output Power 3W
Output Current 333mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 333mA
Output Voltage 9V
Voltage - Input (Max) 72V
Voltage - Isolation 1kV
Efficiency 82%
Number of Outputs 1
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 1.27Lx0.58W x 0.28 H 32.3mmx14.7mmx7.0mm
Series ECONOLINE RW-S (3W)
Packaging Tube
Operating Temperature -40°C~80°C
Physical
Weight 7g
Number of Pins 8
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
