RV-0515D/R8
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

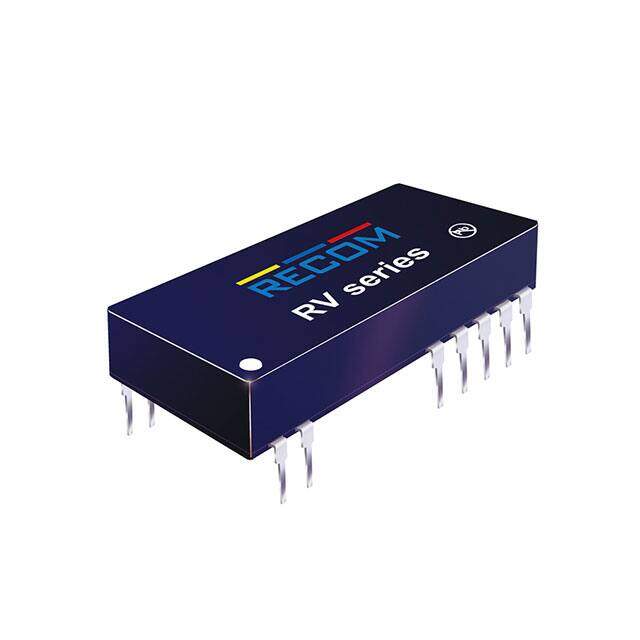

Recom Isolated DC-DC Converter, Vin 4.55.5 V dc, Vout 15V dc, I/O isolation 8000V dc
PDF
/
Inventory: 6332
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 11.1mm
Technical
Nominal Input Voltage 5V
Voltage - Output 2 -15V
Max Output Voltage 15V
Output Power 2W
Output Current 66mA
Current - Output (Max) 66mA 66mA
Voltage - Input (Min) 4.5V
Max Output Current 66mA
Output Voltage 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 8kV
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 2
Depth 11.4mm
Terminal Position DUAL
Max Power Dissipation 2W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.27Lx0.58W x 0.45 H 32.4mmx14.7mmx11.4mm
Series ECONOLINE RV/R (2W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 9g
Number of Pins 14
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
