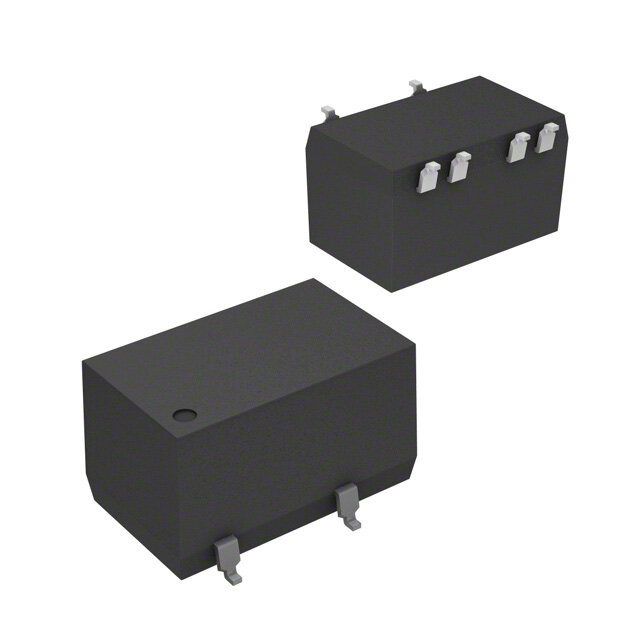

RSZ-1505 image
Favorite
RSZ-1505 image
Favorite

RSZ-1505

Recom Power
RoHS
RoHS RoHS compliant
Package 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 1W 15VIN 05VOUT
PDF
/
Inventory: 3360
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 8.89mm

Technical

Nominal Input Voltage 15V
Total Power Output-Max 1W
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 15V
Voltage - Input (Min) 13.5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 16.5V
Voltage - Isolation 1kV
Efficiency 60%
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature SCP
Size / Dimension 0.60Lx0.37W x 0.35 H 15.2mmx9.3mmx9.0mm
Series ECONOLINE RSZ (1W)
Packaging Tube
Operating Temperature -40°C~70°C

Physical

Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
