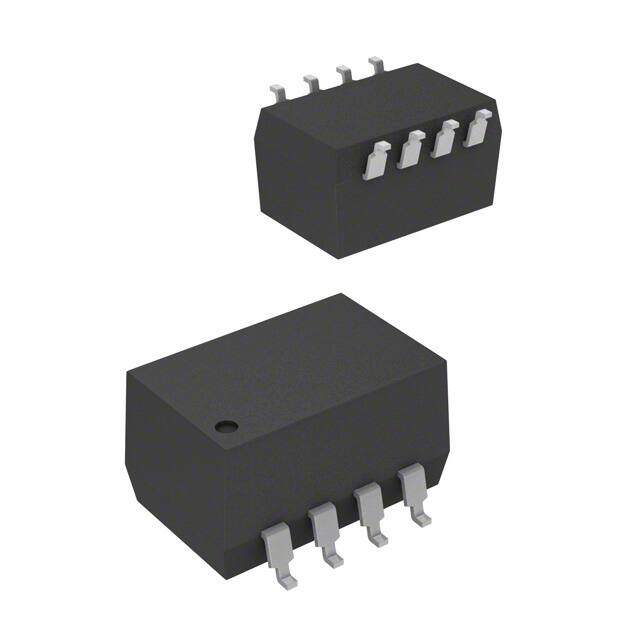

RSS8-0505 image
Favorite
RSS8-0505 image
Favorite

RSS8-0505

Recom Power
RoHS
RoHS RoHS compliant
Package 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 8-Pin DIP SMD Tube
PDF
/
Buying Options
Total Price: USD $5.91
Unit Price: USD $5.9071
≥1 USD $5.9071
≥10 USD $4.8469
≥100 USD $4.6949
≥500 USD $4.54385
≥1000 USD $4.3928
Inventory: 213
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7.9mm
Height 7.366mm

Technical

Isolation Isolated
Nominal Input Voltage 5V
Total Power Output-Max 1W
Output Power 1W
Output Current 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 78%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Depth 8.15mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.32W x 0.29 H 12.8mmx8.2mmx7.3mm
Series ECONOLINE RSS (1W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 8
Package / Case 8-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
