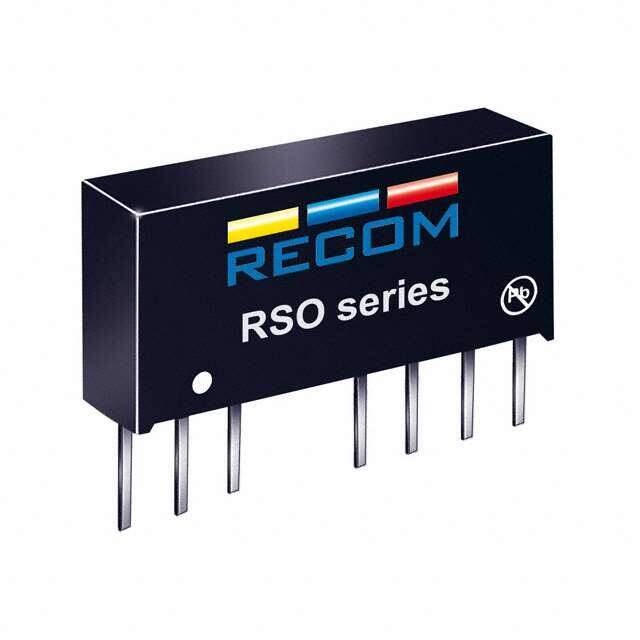

RSO-0515D
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 4.5-9VIN +/-15VOUT
PDF
/
Inventory: 1136
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 11.1mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 9V
Current - Output 2 34mA
Nominal Output Voltage -15V
Max Output Power 1W
Nominal Input Voltage 5V
Max Output Voltage 15V
Control Features Enable, Active Low
Output Power 1W
Output Current 34mA
Current - Output (Max) 34mA 34mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 34mA
Output Voltage 15V
Voltage - Isolation 1kV
Efficiency 79%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XSMA-T7
Pin Count 8/7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 21.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Series ECONOLINE RSO (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 4.7g
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
