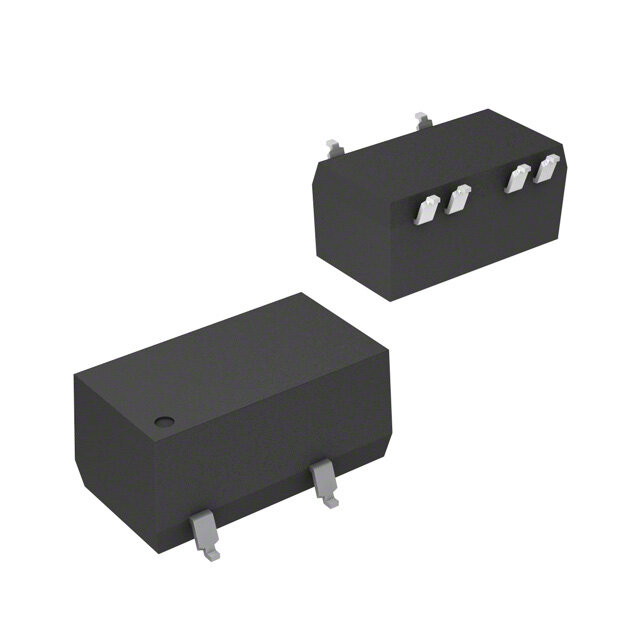

RSD-2409
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 24VIN +/-09VOUT
PDF
/
Inventory: 6109
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RSD (1W)
Size / Dimension 0.60Lx0.32W x 0.29 H 15.2mmx8.2mmx7.3mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-G6
Number of Outputs 2
Efficiency 78%
Voltage - Isolation 1kV
Voltage - Input (Max) 26.4V
Output Voltage 9V
Voltage - Output 1 9V
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 56mA 56mA
Voltage - Output 2 -9V
Total Power Output-Max 1W
Dimensions
Height Seated (Max) 7.55mm
Length 14.7mm
Width 7.9mm
Compliance
RoHS Status ROHS3 Compliant
