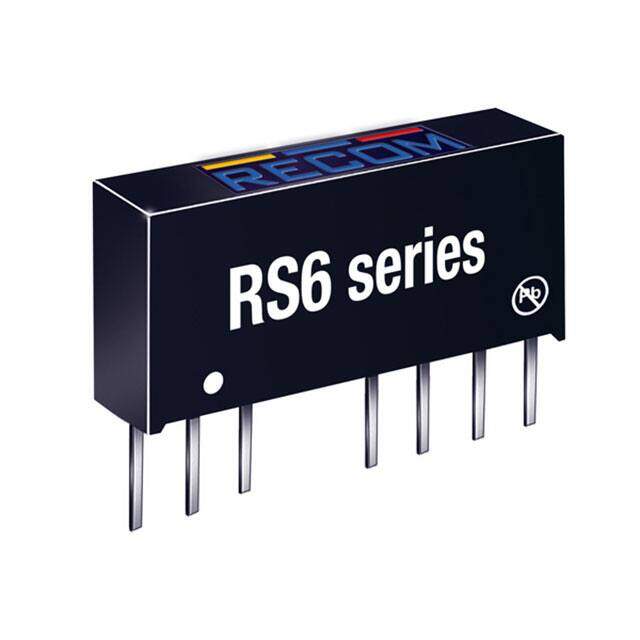

RS6-0505D
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 6W
PDF
/
Inventory: 1433
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 11.1mm
Technical
Total Power Output-Max 6W
Voltage - Output 2 -5V
Max Output Voltage 5V
Control Features Enable, Active Low
Output Power 6W
Output Current 600mA
Current - Output (Max) 600mA 600mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Output Voltage 5V
Voltage - Input (Max) 9V
Voltage - Isolation 1.6kV
Efficiency 84%
Number of Outputs 2
JESD-30 Code R-PSMA-T7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, SCP, UVLO
JESD-609 Code e3
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Series ECONOLINE RS6 (6W)
Packaging Tube
Operating Temperature -40°C~75°C
Physical
Weight 4g
Surface Mount NO
Package / Case 8-SIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
