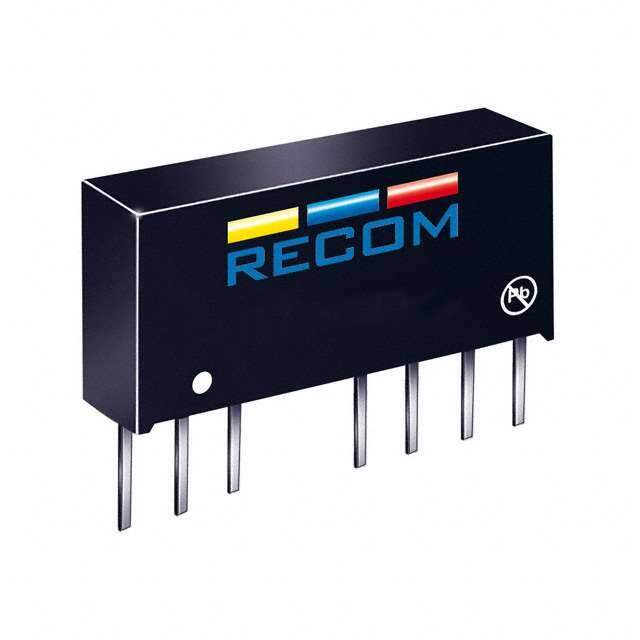

RS-0512D/H2
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 4.5-9VIN +/-12V
PDF
/
Buying Options
Total Price: USD $18.95
Unit Price: USD $18.9464
≥1 USD $18.9464
≥10 USD $18.50288
≥100 USD $18.35944
≥500 USD $18.072032
≥1000 USD $17.211568
≥3000 USD $16.236088
Inventory: 1021
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Number of Pins 7
Weight 4.7g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RS (2W)
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Feature Remote On/Off, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 9.2mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 8/7
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 2kV
Voltage - Input (Max) 9V
Output Voltage 12V
Max Output Current 83mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 83mA 83mA
Output Current 83mA
Output Power 2W
Control Features Enable, Active Low
Max Output Voltage 12V
Voltage - Output 2 -12V
Total Power Output-Max 2W
Nominal Input Voltage 5V
Isolation Isolated
Dimensions
Height 11.1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
