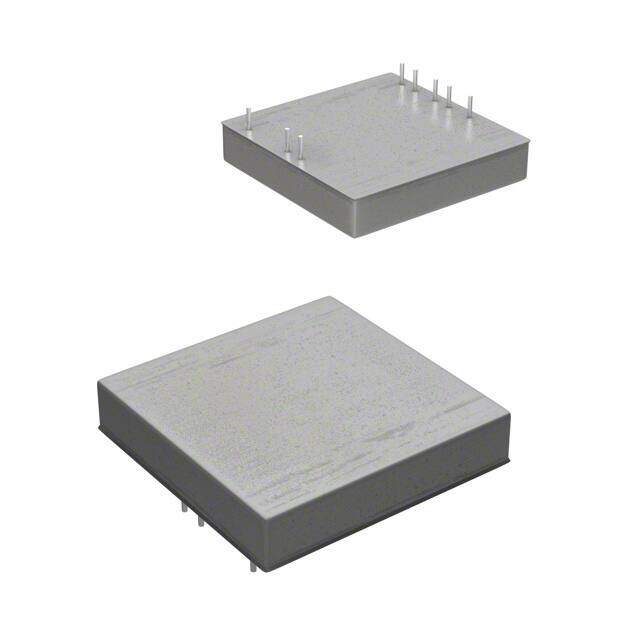

RP40-4805SGW
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 40W SNGL 5V OUT
PDF
/
Inventory: 9447
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 10.2mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Nominal Output Voltage 5V
Isolation Isolated
Max Output Power 40W
Nominal Input Voltage 48V
Current - Output 1 8A
Max Output Voltage 5.5V
Control Features Enable, Active High
Output Power 40W
Output Current 8A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Max Output Current 8A
Output Voltage 4.5V
Voltage - Isolation 1.6kV
Efficiency 88%
Number of Outputs 1
Pin Count 8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 51.3mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 40W
Additional Feature HGT NOM
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series POWERLINE RP40-GW (40W)
Packaging Tube
Operating Temperature -40°C~95°C
Physical
Weight 60g
Number of Pins 8
Package / Case 8-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 12 Weeks
