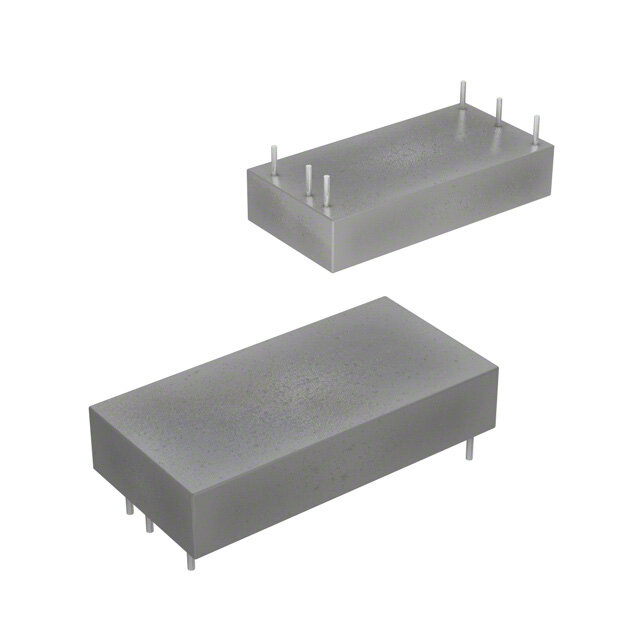

RP20-4812DFW-HC image
Favorite
RP20-4812DFW-HC image
Favorite

RP20-4812DFW-HC

Recom Power
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 20W 18-75VIN +/-12V
PDF
/
Inventory: 2134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Length 50.8mm
Height 16.8mm

Technical

Isolation Isolated
Nominal Input Voltage 48V
Voltage - Output 2 -12V
Max Output Voltage 12V
Control Features Enable, Active High
Output Power 20W
Output Current 833mA
Current - Output (Max) 833mA 833mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Max Output Current 833mA
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 2
Depth 25.4mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series POWERLINE RP20-FW (20W)
Packaging Tube
Operating Temperature -40°C~63°C

Physical

Weight 37.9g
Number of Pins 6
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
